| Project |
Unit |
Design Value |

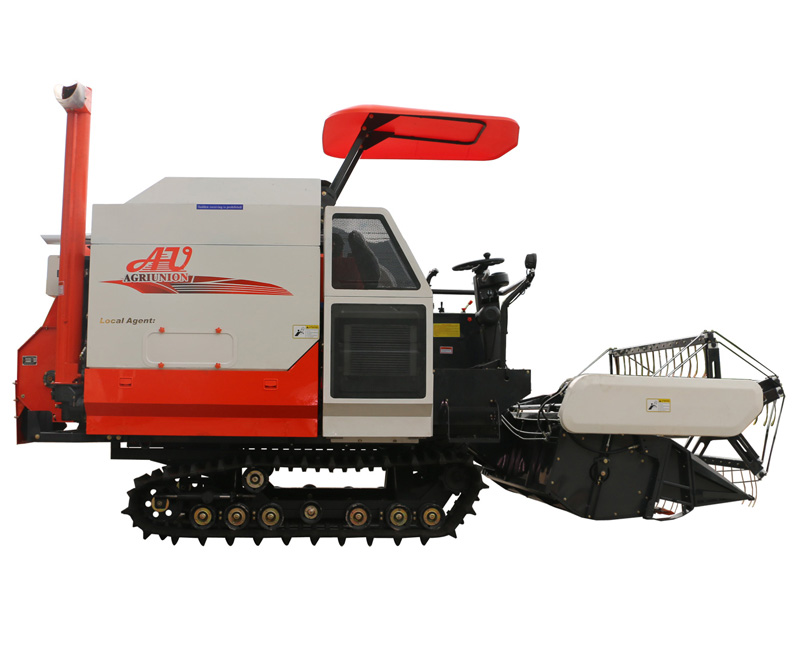

| Machine Model |
/ |
AU2.2I-DD-B |
| Style & Type |
/ |
Rubber Track |
| Engine |
/ |
Changhai 4G33 |
| Engine Model |
/ |
4G33TC |
| Engine Type |
/ |
4 Cylinders, Directly, Water cool |
| Qty.of Cylinder |
cylinder |
4 |
| Power |
kW |
81 |
| Rotate Speed |
r/min |
2600 |
| Dimension L×W×H |
mm |
5285×2480×2650 |
| Weight (empty tank) |
kg |
4050 |
| Cutting Width |
mm |
2200 |
| Ground Clearance |
mm |
275 |
| Knife Type |
/ |
Ⅱ type |
| Feed Rate |
kg/s |
6.0 |
| Walking Gearbox type |
/ |
Stepless Transmission |
| Walking Speed |
km/h |
0-8.0 |
| Harvesting Capacity |
h㎡/h |
0.3～0.6 |
| Oil Consumption |
kg/h㎡ |
≤35 |
| Cutter Auger type |
/ |
Screw blade+ Eccentric flexibility tine（floating） |
| Pressure of connect ground |
kPa |
23.7 |
| Reel type |
/ |
Tine bars + Eccentric bar frames |
| Reel Diameter |
mm |
Φ1000 |
| Plate of Reel |
pcs |
5 |
| Threshing type |
/ |
I’ style= longitudinal flow |
| Drum quanity of Threshing |
pcs |
1 |
| Main drum type of Threshing |
/ |
Shaft + Tine |
| Main drum dimension |
mm |
φ605×2020 |
| Concave type |
/ |
4 Steel grids |
| Blower type |
/ |
Centrifugal type |
| Blower diameter |
mm |
Φ390 |
| Blower Qty. |
pcs |
1 |
| Rubber Track Specification |
/ |
500-90-56 |
| Track Gauge |
mm |
1250 |
| Driving type |
/ |
Double pump+Double motor+Gearbox |
| Brake type (front back) |
/ |
Brake Drum |
| Gearbox type |
/ |
Stepless Transmission |
| Cabin type |
/ |
Simple |
| Crusher |
/ |
Vibration |
| Unloading Grain type |
/ |
Automation |
